Product

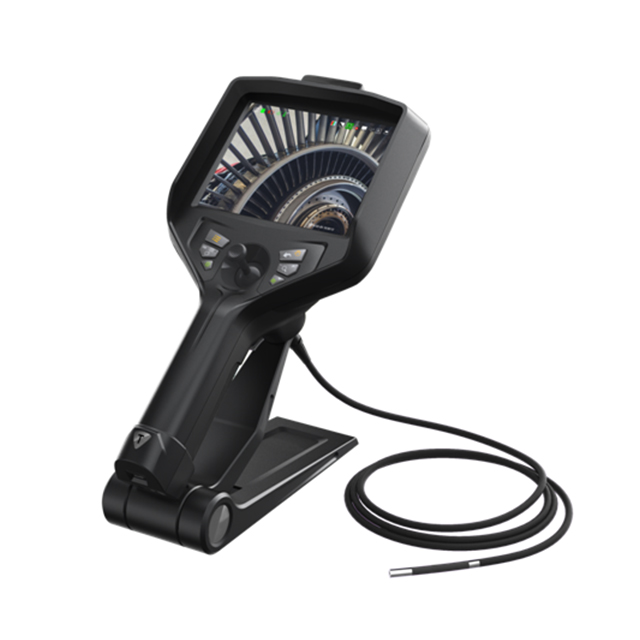

THX series Industrial endoscope

THX series Industrial endoscope

Product introduction

Hd, portable, flexible, diverse - THX series, using the latest digital high-definition image processing technology, with 1 million pixels and 5.1 inch color IPS LCD display, high-definition image sensor, remote image transmission technology to ensure clearer images. Shading design, even in the environment with strong natural light, can also detect the subtle defects of the product.


The THX series endoscope is a smart HD video endoscope with unlimited scalability and superior compatibility. Products using mechanical 360° rocker technology, insert tube replaceable structure, diameter 2.2mm, 2.8mm, 3.8mm, 5.8mm direct view/purple light/double camera lens, so that you can choose on demand, one machine multiple tubes, at the best price to get the best combination, to adapt to a variety of working conditions. High sensitivity operating handle, tungsten alloy wire multi-layer braided insert tube, wear resistant and durable. Wear-resistant and anti-fall engineering alloy shell, the whole machine is easy to operate, durable, clear recording.

Ensure that the endoscope is waterproof, anti-oil, anti-5% salt solution, anti-dust, pass the 1.2m altitude fall test, anti-radiation, and meet the IP67 protection standard.

Technical parameter

Feature / SpecificationDetail
Probe DiameterΦ3.8mm/5.8mm±0.2mm
Probe Length1.5m
Camera PixelsHigh-definition CMOS camera, 1 million pixels
Depth of Field5mm-80mm/5mm-200mm
Field of View90°/120°
Light SourceRear-mounted fiber optic cold light source (LED)
Observation Direction0° straight view (90° side view optional)
Illumination SystemFiber optic illumination
Light Source Lifespan≥30000 hours
IlluminanceUp to 100000+ LUX, manually adjustable in 10 levels
Insertion Tube MaterialSectional flexible tungsten alloy wire braided multilayer tube
Probe Protection ShellTitanium alloy
Effective Working Length1.5m (other lengths customizable)
Bending Direction360° full direction bending
Bending AngleUp to 190°
Probe PositioningDamped automatic positioning (optional with locking device)
Tube ReplacementTube replacement possible, one main unit, multiple sets of tubes of different diameters
Display5.1 inch color IPS LCD capacitive touch screen, full viewing angle, coated protection, shade design
Screen Resolution1280*960
Magnification FunctionUp to 8 times magnification
Menu Language SelectionChinese, English, Russian and other eight languages
Exposure Suppression5 levels of exposure suppression adjustment
White BalanceAutomatic white balance
Image EffectsNegative, black and white, standard
Probe Temperature DisplayProbe temperature display, high temperature warning
Software FunctionsSupport review, image parameter adjustment, flip, mirror
Photo/Video File FormatsJPEG, bmp, png, gif, svg, psd / AVI, mp4, rmvb, mov, rm
Simulated RulerMeasuring simulated ruler for size analysis of internal defects and objects
Image Resolution1280*720
Video Resolution1280*720
Infrared FunctionInfrared night vision/infrared thermal imaging (optional)
Shell Structure MaterialDrop-proof engineering alloy material
Protection LevelProbe, objective lens, pipeline protection level reaches IP67
Machine StructureHandheld integrated main unit
Storage MediumMain memory 1GB; capacity 32GB TF card (supports expansion to 128G)
Main Unit CompatibilityCan replace with a 3.5 inch portable screen and is compatible with insertion tube wires of 3mm or thinner specifications
Data InterfacesHDMI video output interface, AV signal output interface, Micro USB port, interface with sealed settings for dustproof and splashproof, can connect to external displays
Wireless Image TransmissionWireless transmission of images to mobile phones, computers, and other terminals
Battery Life≥8 hours, built-in power supply can last for 8 hours
Power SourceDetachable rechargeable lithium battery (optional with built-in rechargeable lithium battery)
Battery Capacity18650 lithium battery, supports both AC and DC power supplies
Power Consumption2W
ChargingDC5V, maximum current 1A
Machine Weight≤0.75kg (including the weight of two batteries)
CompatibilityCan independently replace/upgrade the main unit, compatible with probes of different diameters
Storage Temperature Range-25℃~80℃
Relative HumidityUp to 90%, no condensation
Probe Temperature DisplayReal-time temperature display and two-level high temperature alarm
Main Unit Working Temperature Range-25°~80℃, screen needs preheating below 0℃
Probe Working Temperature Range-25℃~100℃, reduce steering operations below 0℃
